How-To Install A Vinyl Floor In Your Van
We spent a couple days replacing the soft stock floor mat with a plywood and vinyl floor. The stock mat is not the best foundation to build a bed and cabinets on top of. And it doesn’t give you that cozy home feeling. Instead it gives off a work van vibe, not the killer adventure van feeling we want.
We went with a rather thin floor with minimal insulation so that the D-ring bolt holes are still usable.

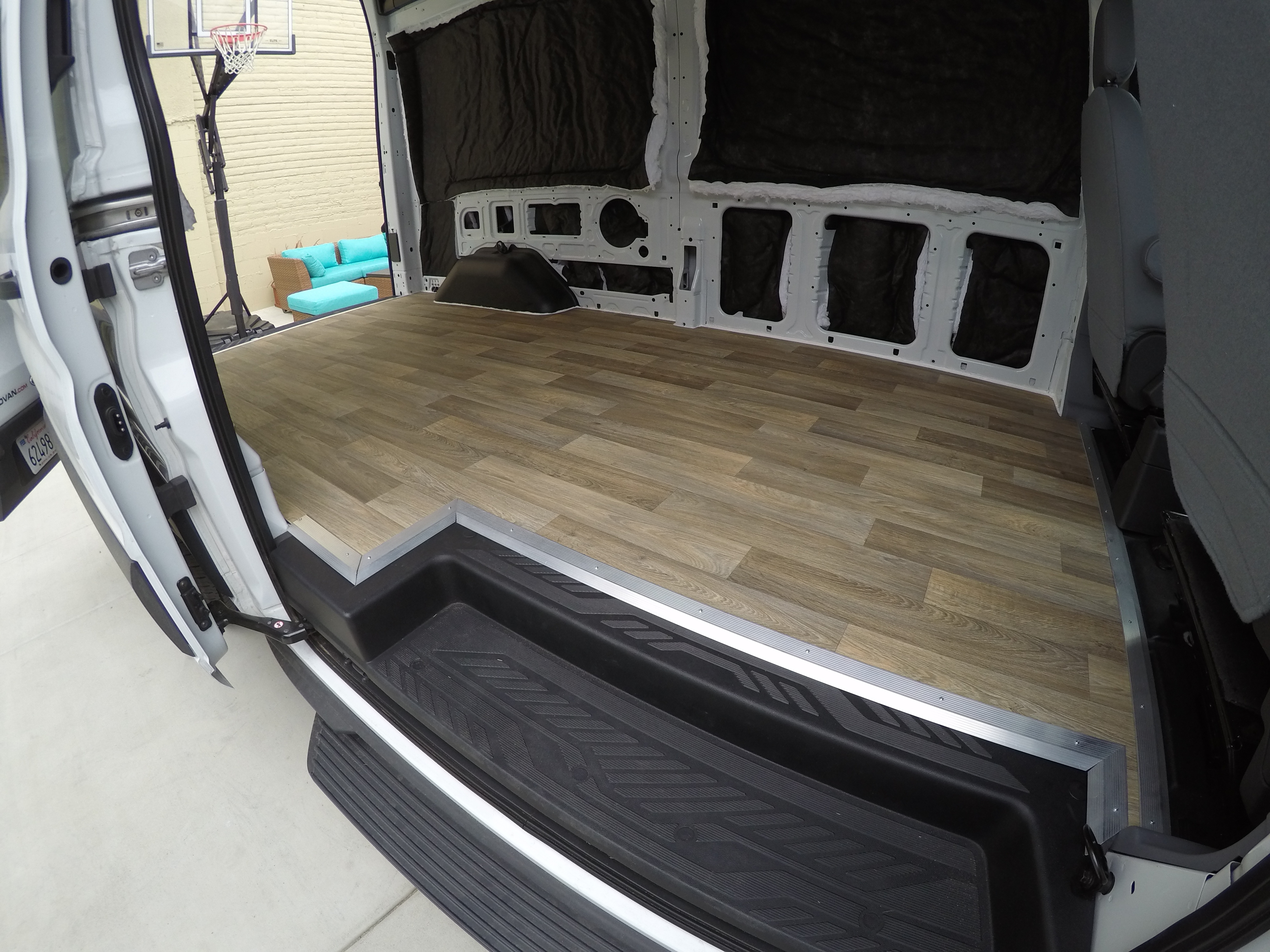

View from the rear of finished vinyl floor.
View from the side of finished vinyl floor.
Floor layers: sheet vinyl, vinyl adhesive, plywood, underlayment, plywood strips, adhesive, and van floor all held together with wood screws.
Parts
We spent approximately $500 on parts:
- Vinyl sheet – $185.76
- Vinyl adhesive – $17.94
- Premixed patch and leveling compound – $9.97
- Plywood: 3 sheets 4’x8’x15/32″ exterior AC – $115.07
- Underlayment – $44.98
- 3M 4200 Adhesive – $25.08
- #8 3/4″ screws for plywood – $4.65
- #4 5/8″ screws for trim – ~$4.00
- #8 Countersink drill bit – $9.47
- Metal fluted carpet trim – ~$25.00
- White Caulk – ~$3.00
- Great Stuff spray foam – $3.98
Tools
- Socket set
- Razor blade
- Trowel
- Circular saw
- Miter saw
- Jig saw
Video
Instructions
The original flooring was removed, including the side step, back step, and floor mat. The side step and back trim have bolts and push pins holding them down.
To remove the side step trim you need to pop up the bolt covers. The tip of a razor blade works good for this.
4 bolts and three push pins hold the side step down.
Once the bolts were removed, some force was needed to actually remove the trim pieces. They’re held down with some plastic push pins. We broke 1 of the 3 during removal of the side step.
Rear entry without trim.
Side entry without trim.
We then laid out the 3 pieces of 4’x8’x15/32″ exterior AC plywood with the good side down.
3 sheets of 8’x4’x15/32″ exterior AC plywood is enough to cover the floor and only have 2 seams.
We took the mat off and laid it down on top of the wood. We put the front of the mat all the way to the edge of the wood since we wanted that to be a straight edge.
Laying the stock floor mat on top of the plywood gives a nice template.
We then traced out the mat. Having the mat made the job a little easier.
Tracing the mat onto the plywood.
Tracing around the wheel wells.

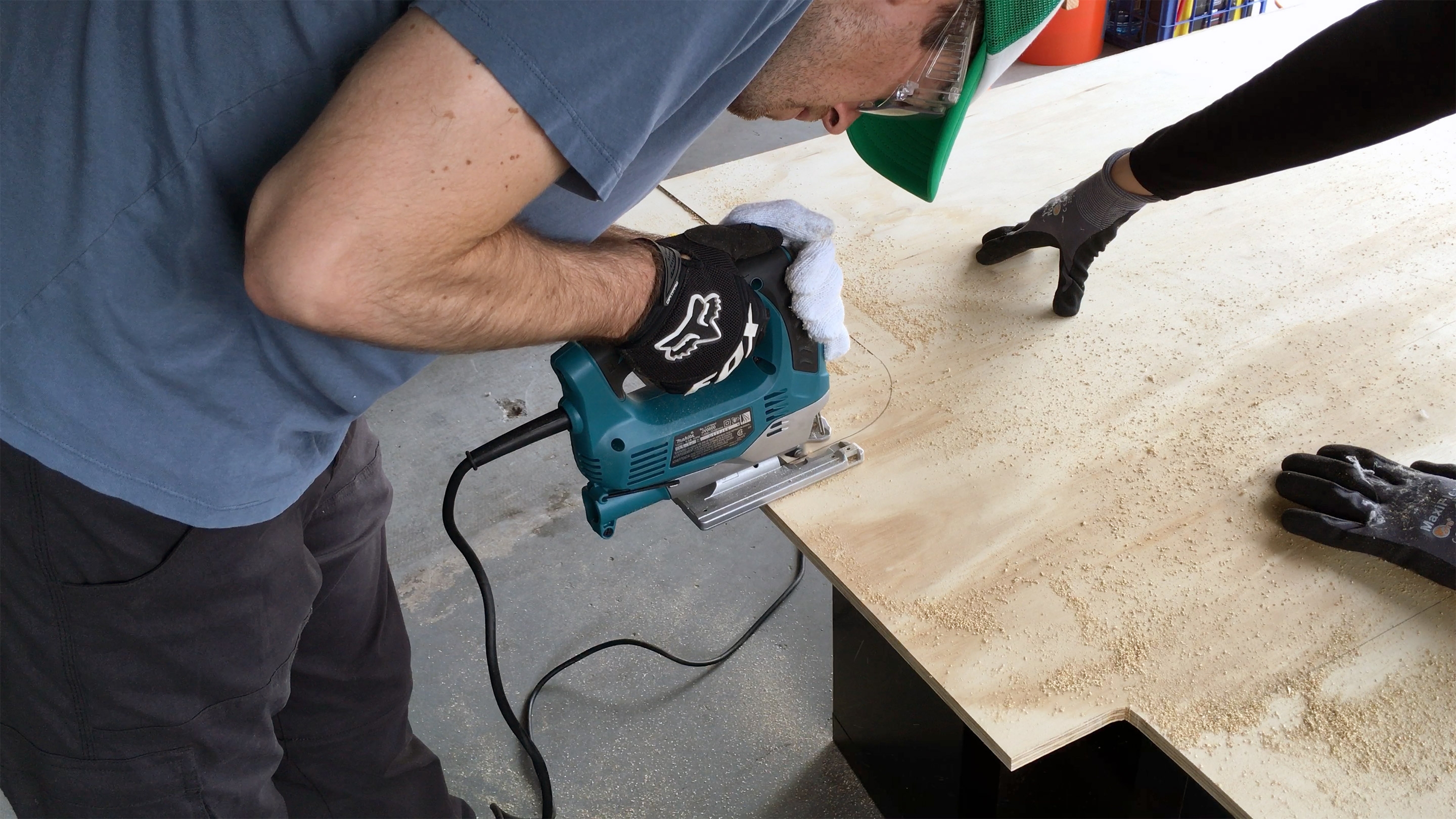

We then used a jigsaw and circular saw to cut out the wood.
Using a jigsaw to cut the plywood.
When we got to the front we decide to not cut out the step yet. The mat did not extend the whole way to the step because of the trim piece.
After tracing and cutting everything out except for the side step area we placed the plywood back into the van to test the fit.
We then tried our best to trace along the step to get a better cut.
With the plywood in place we traced out the side step entry.
At first we thought we weren’t going to use the stock trim pieces so we needed to get the plywood as close to the metal floor edge as possible. In the end this didn’t matter as we had to cut more off to make room for the stock trim pieces.
Test fitting the plywood.
The fit up was pretty good.
Test fitting the plywood.
Inside view of the plywood. It fits!
We wrote a little message in Gidget before affixing the floor.
Before we permanently installed the floor we wrote a little message.
Some of the valleys in the floor are rather wide, and we wanted to avoid bowing of the subfloor, so we cut some strips out of the excess plywood. This also made the floor more sturdy and will hopefully provide extra support for the bed and cabinets. This is also what we used to screw the subfloor down.

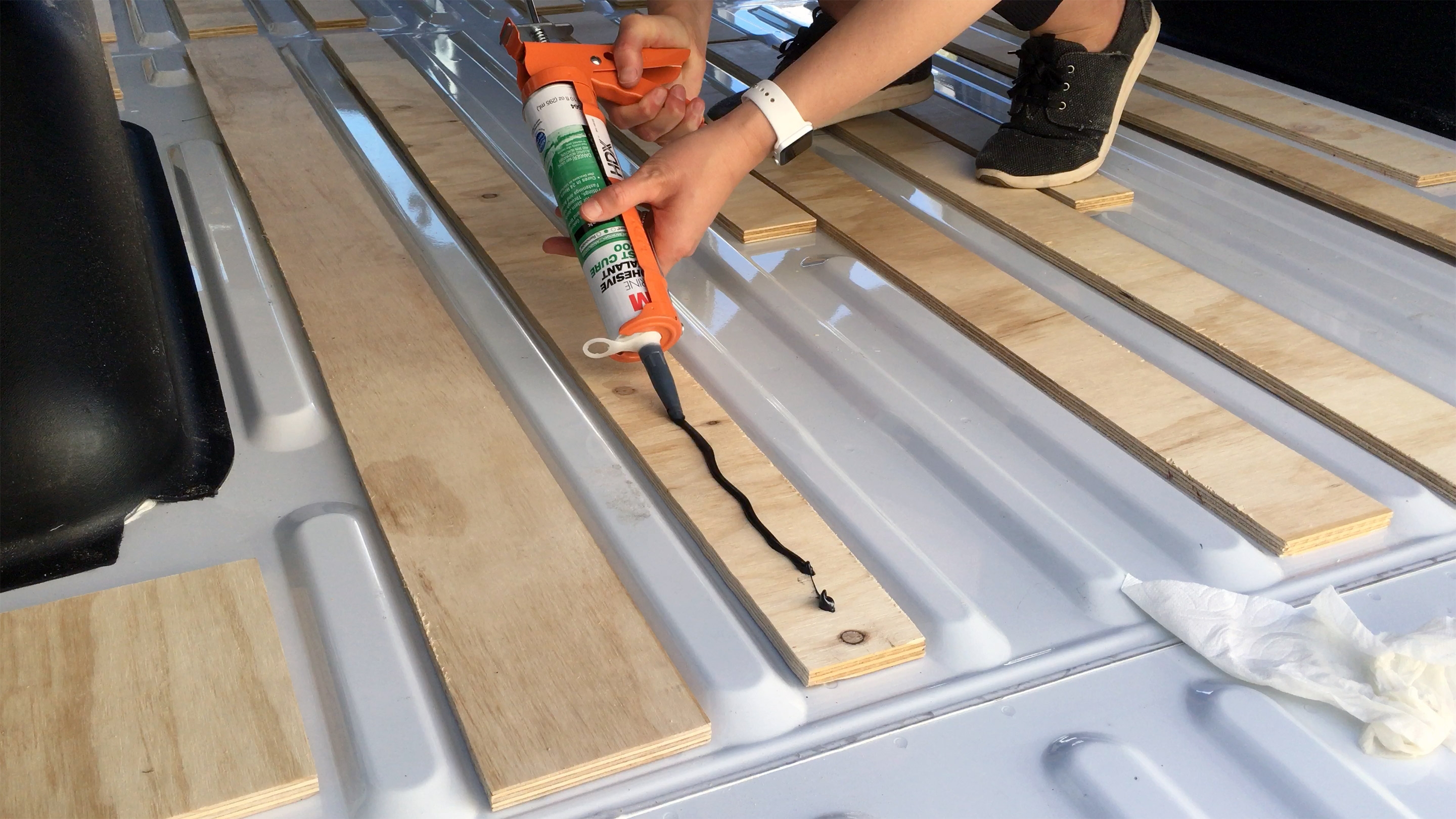

We cut strips of 15/32″ plywood and attached them to the low parts of the floor with 3M 4200 adhesive.
After we cut the wood strips and placed them where we wanted them we started gluing. We had some leftover 3M 4200 adhesive from the fan install that we stored in our fridge, there was just enough to glue down all of the pieces.
3M 4200 leftover from the fan install was used to attach the strips of wood to the van floor.
All the strips came from the leftovers pieces after cutting the floor out.
The strips of wood sit just above the high points of the floor.
We weighed down the floor with some glass desks that we had on hand and let the adhesive cure overnight. When we came back in the morning the wood was securely bonded to the floor.
Heavy glass desk tops were used to weigh down the plywood strips while the adhesive cured.
We didn’t want to raise the floor too much but we wanted at least something between the plywood subfloor and the metal van floor. We found very thin underlayment and used that as insulation. Label says it adds stability, sound dampening, and thermal insulation.
We decided to layer the floor outside how it would be installed in the van to hopefully not mess up any of the cuts. We had a painters tarp handy, so we put the underlayment on top, and then the plywood subfloor.
We used the plywood as a template to cut out the underlayment.
We cut the underlayment with a razor blade keeping roughly an inch around the wood.
We left about an inch of extra underlayment on all sides to account for any gaps on the sides.
We then rolled out the vinyl floor on top of the plywood and got to cutting. The vinyl comes in a 12 foot wide piece. We wanted the wood to run lengthwise in the van, so we purchased a 12’x12′ piece. We cut off roughly 6′ and rolled it up and set it aside as our, if we really screw this up we can start over piece. We then cut out the major pieces such as the wheel wells, leaving a few inches of wiggle room.
We laid the vinyl on top of the wood and cut the general shape out. We left at least 6″ around all the sides. Once we put into the van we did the final trimming.
If we were to do this again, I might consider cutting as close to the plywood edges as possible. The vinyl is pretty easy to cut and it is hard to cut around some of the edges of the van when it is in it. It is probably easier with a square room, but all of the curves made it pretty rough.
Rough cut of the vinyl.
We then rolled up the vinyl and started installing the pieces in the van. We started with the underlayment.
The underlayment was placed on top of the plywood strips.
Then added the plywood. We ended up marking on the plywood where the wood strips were so we knew where we could screw into.
The plywood was placed on top of the underlayment.
We then used the countersink drill bit to pre drill holes into the subfloor, spaced out roughly every 12′ – 16″. Then the #8 3/4″ screws for plywood were installed in the subfloor, attaching it to the bonded wood pieces. The screws and seams were then covered with a floor leveling compound to create a smooth surface under the vinyl.
Roughly every 12 to 16 inches the subfloor was screwed into the plywood strips.
The screw holes and seams were filled with floor leveling and smoothing compound.
After the leveling compound dried, it was time to install the vinyl. Half of the vinyl was folded out of the way. A felt vinyl adhesive was laid down on the plywood using a trowel.
Using a trowel vinyl adhesive was applied to the plywood floor.
After the adhesive covered the floor, we folded the vinyl back over a used and used a rolling pin to roll out any air pockets.

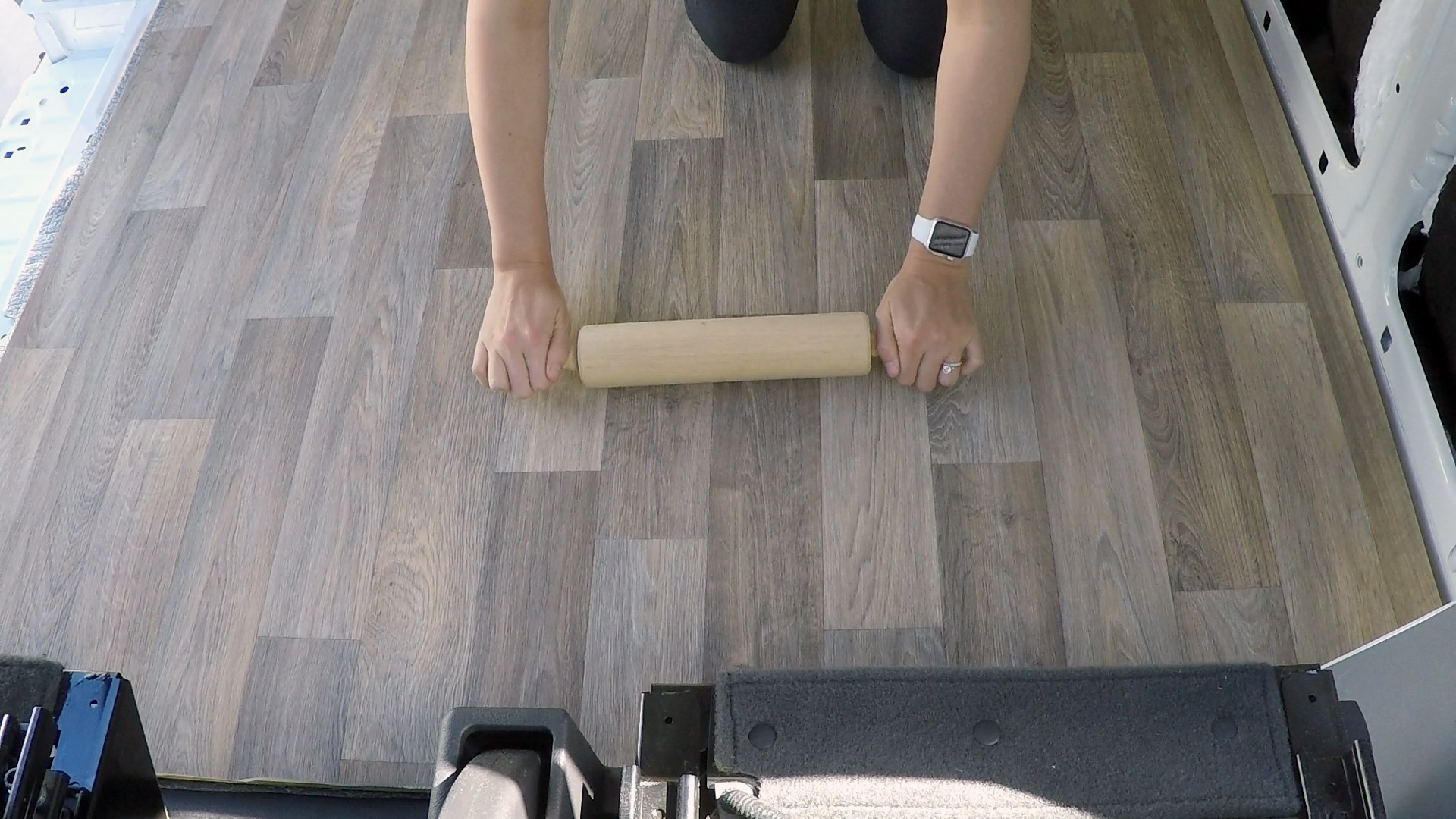

We used a dough rolling pin to get rid of any air bubbles.
Rear entrance showing the vinyl floor.
Side entrance showing the underlayment, plywood, and vinyl sandwich.
Looks pretty good doesn’t it! We went with sheet vinyl because it’s waterproof, thin, durable, easy to install, and looks decent.
Once the vinyl was down we added trim around the side and rear entrances.
Installed vinyl floor.
Side entrance showing stock trim and vinyl floor.
Close up of side entrance trim and vinyl floor.
Cutting metal trim.
Pre-drilling holes to screw in the metal trim pieces.
Close up of the installed trim.
Side entrance with finished trim.
Any of the large gaps around the edges of the floor were filled with Great Stuff spray foam.

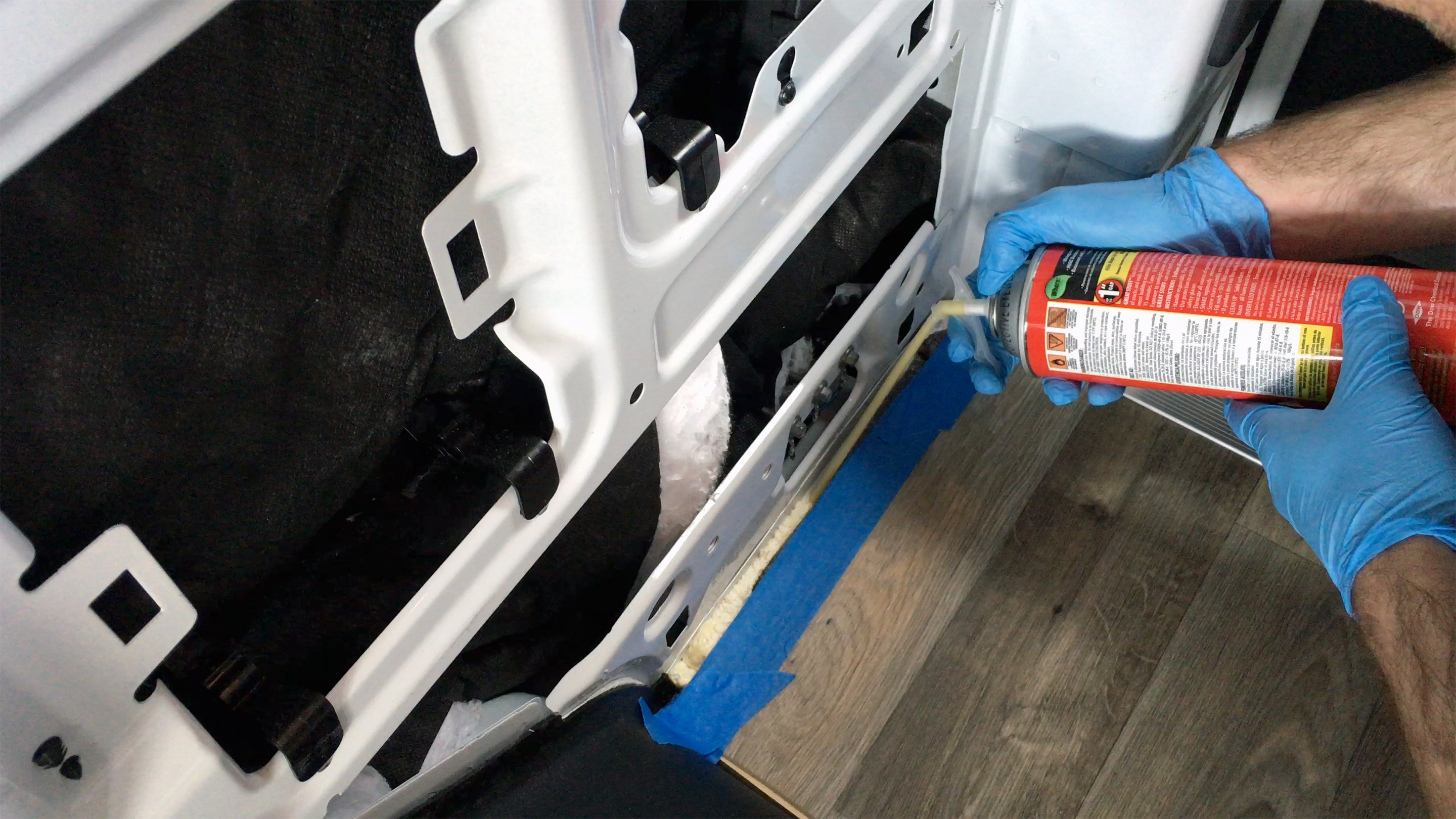

We filled the larger gaps between the floor and the van walls with spray foam.
White caulk was used to seal the edges of the floor.
Finished edge after applying white caulk.

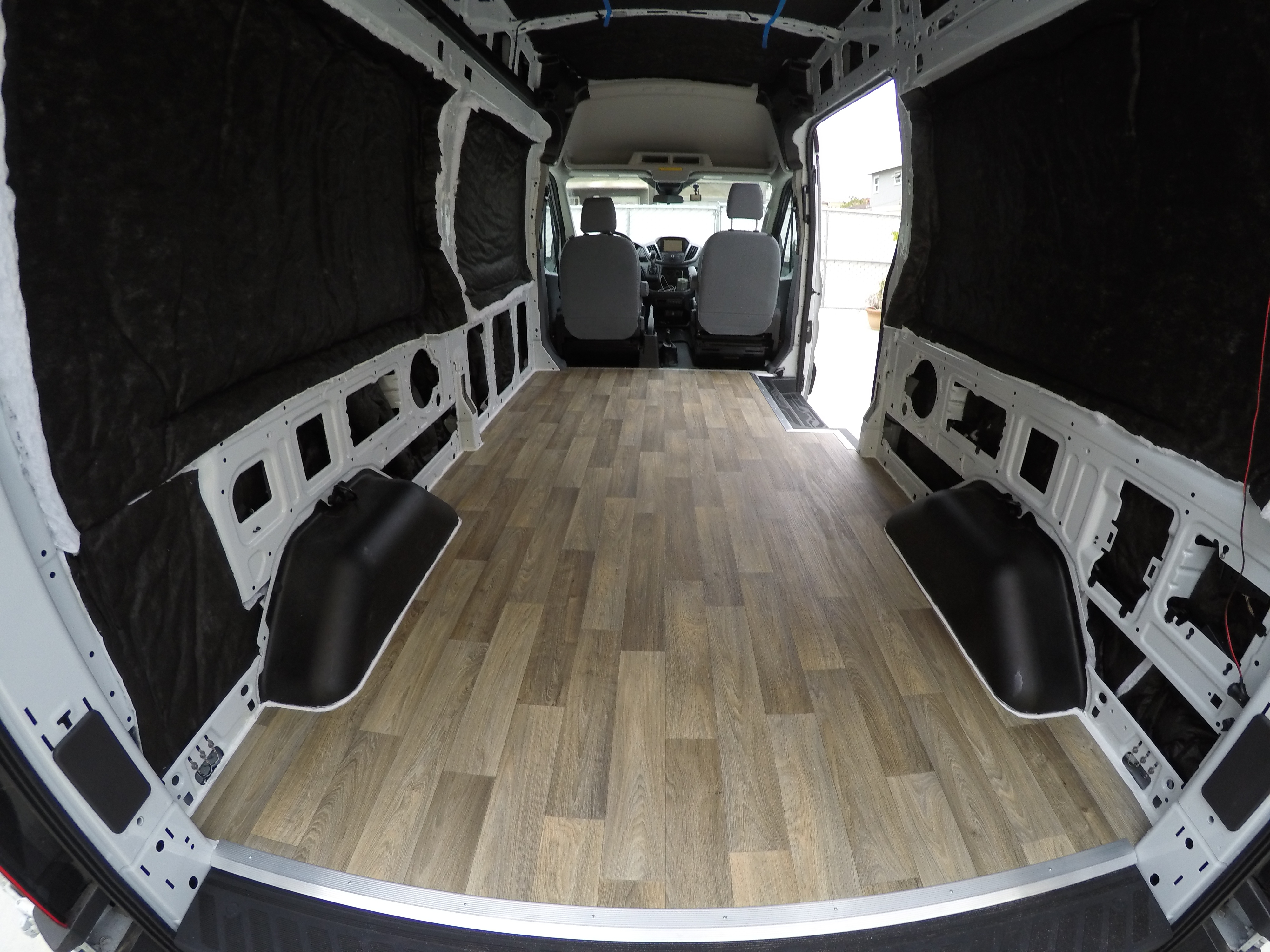

View from the rear of finished vinyl floor.
View from the side of finished vinyl floor.
